DIY Power Steering
Fluid Change


impee's DIY Power Steering Fluid Change / Flush for BMW 318i e46
How to Change / Flush Power Steering Fluid yourself!

Difficulty Level: Easy

Approximate Time For This Project: 30 mins

Prices: Professional labour costs for Power Steering Fluid Change/ Flush - £55 (private) or £155 (BMW) - per hour X 1 hours



REQUIRED ITEMS
items INFORMATION OUTLET QUANTITY PRICE*
BMW ATF DIII Original BMW (Automatic Transmission Fluid) BMW 1 £15
Turkey Baster     1 £2
Empty plastic bottle     1
Kitchen Roll / Tissues     a couple

*prices correct at time of publication



c   c







BMW e46 Care Care e46 Models Fuse Box On Jack Stands Fault Diagnosis Torque Specifications Air Filter Change Alloy Repair Jack Stands CDV Delete Clutch Bleed Differential Oil Final Stage Resistor Fuel Filter Change Headlight Removal Interior Lights MAFS Clean Oil Change Oil Light Reset Power Steering Fluid Radiator Flush Radiator Fan Change Shiny Steering Wheel Spark Plug Change Transmission Fluid Window Regulator Timing Chain Tensioner Airbag Occupancy Mat Sensor impee impeeCreations BackInfo Hobbit RedHat



1) Assemble Your Kit + Notes

Below is the total kit I used. As you can see, there aren't many tools required for this job at all. It would be best to use an original fluid from BMW and not any other.

Note: DO NOT use Power Steering Fluid, that is a very different oil for a different purpose. Only use ATF (Automatic Transmission Fluid) DIII.

Change Duration: I personally believe that the Power Steering Fluid should be replaced no sooner than every 5 years.

Kit for Power Steering Fluid Change



2) Engine Cover - Removal

Remove the main big BMW cover (Intake Manifold) at the front of engine using this method:

1) Remove the 2 clips at the front - pull up and then out the small round black pins (expanding rivets) with a flat head screw driver

2) Un-clip the hook on the top left

3) Remove the large hose on the top right

BMW Engine Cover Removal



3) Power Steering Fluid Reservoir

As you can see below, this is the reservoir. It will say only ATF on the top of it.

Power Steering Fluid resevoir



4) Removing Fluid

Use the baster to suck out all the oil possible.

Removing Fluid



5) Old Fluid

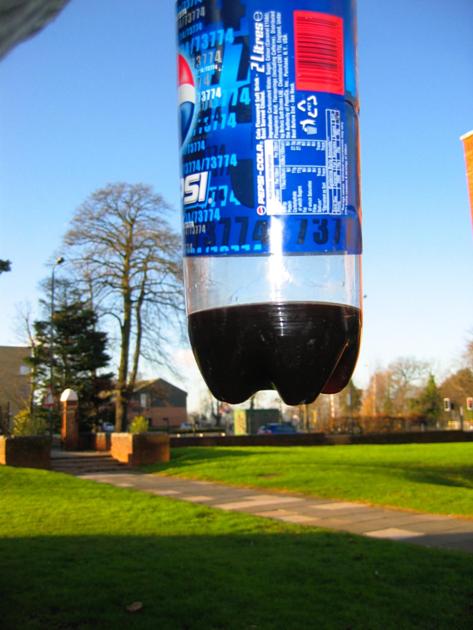

As you can see, the old fluid is not transparent light red as the new fluid, meaning it definitely did require a change.

Fluid removed



6) Fluid Removed

This is the end result of removing all the fluid.

Removed Fluid



7) Fluid - Filing

I would suggest taking the car for a drive so the remaining old ATF fluid (in the pipes and the steering wheel mechanism) can mix with the new one.

Then proceed with step 4 & 7 twice again (after taking the car for a drive). The ATF fluid bottle has enough fluid for 2.5 times more.

Pouring the Fluid



8) Fluid Level Indicator

Now fill the fluid in the reservoir to the notch as indicated.

Fluid Level Indicator



9) Re-assembly

Once your done, re-fit the engine cover.

When driving the car, you will now definitely notice a smoothness when turning the steering wheel.



DIY BMW e46 Power Steering Fluid Change by - impee www.impee.co.uk

Any questions please contact me
