impee's DIY Radiator Flush / Coolant Drain

DIY Radiator Flush

impee's DIY Radiator Flush / Coolant Drain for BMW 318i e46
How to Flush a Radiator / Coolant Drain yourself!

Difficulty Level: Easy

Approximate time for this project: 2 hours

Prices: Professional labour costs for Radiator Flush / Coolant Drain - £55 (private) or £155 (BMW) - per hour X 1 hours

REQUIRED ITEMS
items	INFORMATION	OUTLET	QUANTITY	PRICE*
Anti-freeze	1.5 Litre Part number: 83192211191	BMW	2	£10
Anti-freeze	5 Litre, Anti Freeze & Summer Coolant	http://www.halfords.com	1	£16
Ionised Water	5 Litre (also known as Distilled water)	http://www.halfords.com	1	£4
Flat Head Screwdriver			1
Phillips Screwdriver			1
Flat knife type tool			1
Trolley Jack	Should support up to 2 Tonnes.	http://www.halfords.com	1	£30
Jack Stands / Axle Stands	Should support up to 2 Tonnes. To lift car on stands, refer to this page.	http://www.halfords.com	2	£15
Oil / Coolant Drain Pan	At least 5 Litre capacity.	http://www.sealey.co.uk http://www.toolsdirect2you.co.uk	1	£13

OPTIONAL ITEMS
It is a good idea to go and buy an extra Vent Screw from BMW before you start the DIY. Past DIYs (and my impatient nature) have taught me to always have at least 1 extra of each screw, bolt or clip! Some times you could simply loose one, break or even strip it! They only cost from £0.70 up to £3.00 a piece, depending on what you buy.
items	INFORMATION	OUTLET	QUANTITY	PRICE*
Vent Screw	Part number: 11537793373 Part #2. (please refer to section #17 of this DIY)	BMW	1	£2
17mm Screw Plug & Gasket Ring	Part number: 07119963200 Part #8 Part number: 07119904539 Part #9 (please refer to section #15 of this DIY before you buy them)	BMW	1	£2
Radiator Cleaner 200ml	Art no 0893 556 2 Use only if you wish to flush the radiator.	http://www.wurth.co.uk	1	£7

*prices correct at time of publication

1)	Assemble Your Kit + Notes

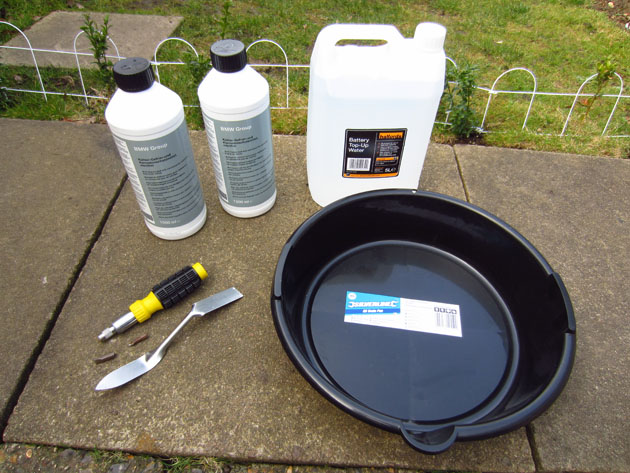

	Below is the total kit I used. As you can see, there aren't many tools required for this job at all. The bottles are 5 litre each, however you only require about 2.5 litres of each to fill the Radiator. Change Duration: The Radiator should be flushed no sooner than every 2 years.

2)	How It Looks

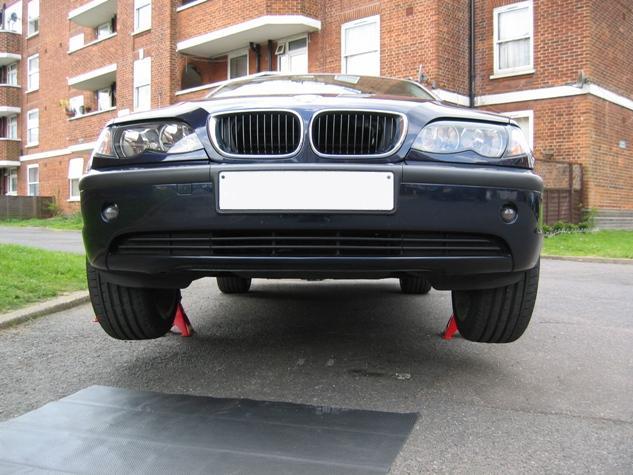

	Best for it to be on 2 stands, so all the water can drain. Having the car on Axle / Jack stands is optional. I used it as I could not get the screw driver underneath the car to open the splash shield screws. If you have a short philips screw driver, then you should be able to get away with no Axle / Jack stands. For more details on lifting the car on Jack Stands, please refer to this page.

How It Looks

Best for it to be on 2 stands, so all the water can drain.

Having the car on Axle / Jack stands is optional. I used it as I could not get the screw driver underneath the car to open the splash shield screws. If you have a short philips screw driver, then you should be able to get away with no Axle / Jack stands.

For more details on lifting the car on Jack Stands, please refer to this page.

3)	Radiator Cap Location
	Just to show the location of the radiator cap and bleed / vent screw.

4)	Radiator Cap And Black Bleed Screw

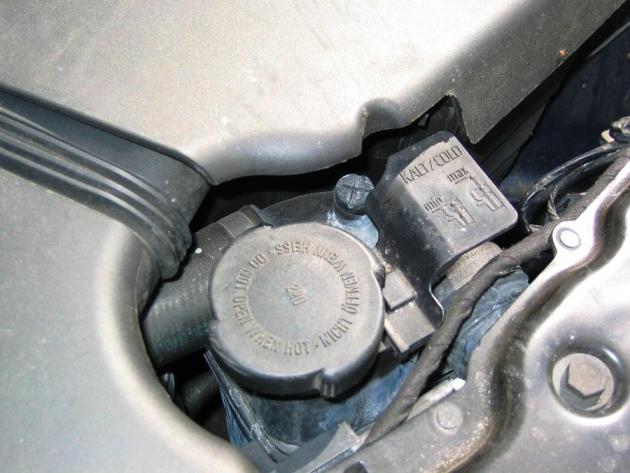

	Close up of the Radiator cap and the bleed / vent screw.

5)	Engine Splash Shield

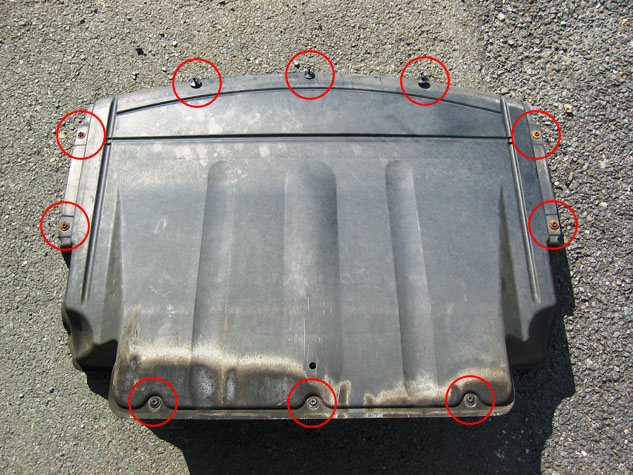

	Next remove the engine splash shield. This is the splash shield from underneath the car. This is to show where and how many screws and Expanding Rivets are located. The Expanding Rivets are the top 3 and the remaining 7 are Quick-release screws. Use the flat head screwdriver for the front Expanding Rivets and the philips head screwdriver for the Quick-release screws.

Engine Splash Shield

Next remove the engine splash shield.

This is the splash shield from underneath the car. This is to show where and how many screws and Expanding Rivets are located.
The Expanding Rivets are the top 3 and the remaining 7 are Quick-release screws.

Use the flat head screwdriver for the front Expanding Rivets and the philips head screwdriver for the Quick-release screws.

6)	Splash Shield Being Removed

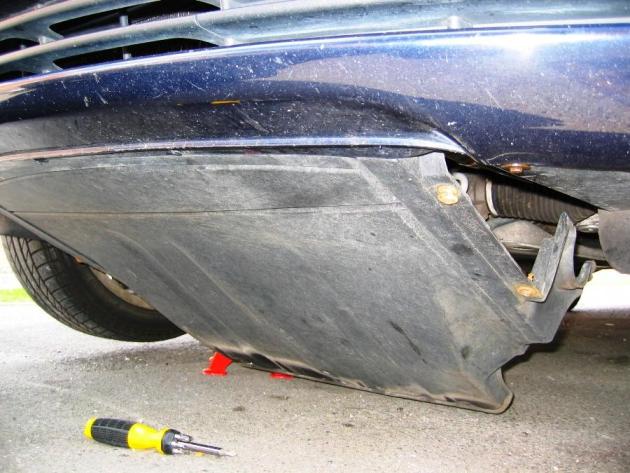

	Splash Shield in the process of being removed, using the flat head screwdriver for the front Expanding Rivets and the philips head screwdriver for the Quick-release screws.

7)	Shield Rivet - Removal

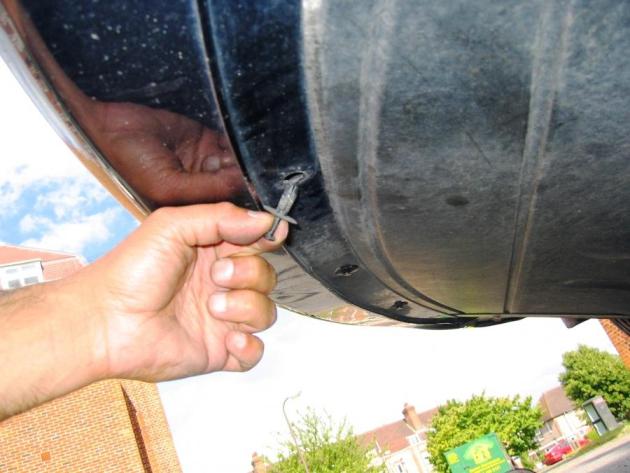

	To remove the front 3 Expanding Rivets you need to first pry out the thin middle part all the way out, then you can pull the rest of the clip out.

8)	Splash Shield Expanding Rivet

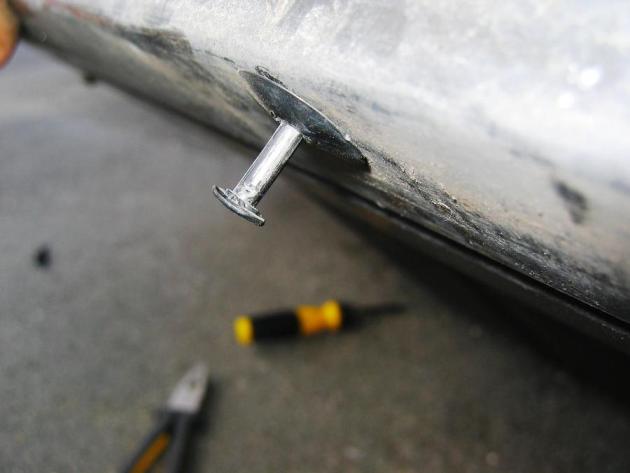

	This is a photo of the middle thin part of the Expanding Rivet pulled out.

9)	Shield Expanding Rivet Removed
	This is the actual Expanding Rivet, removed.

10)	Remove Radiator Cap

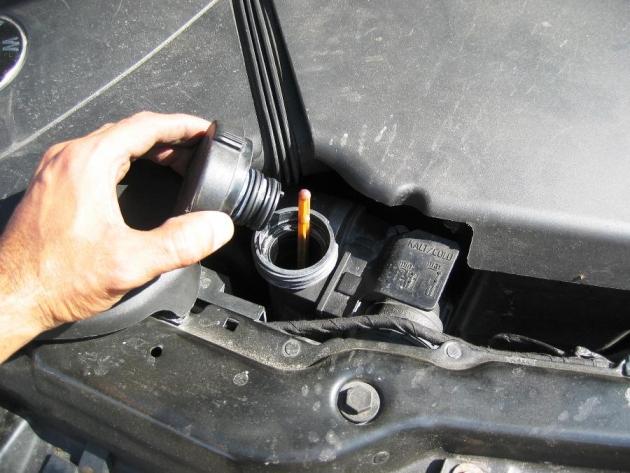

	To begin the process or draining the radiator, first open the Radiator cap.

11)	Remove Big Blue Drain Plug
	Next get underneath the engine / car where the splash shield was removed and locate the big blue drain plug.

12)	How to Remove Blue Drain Plug

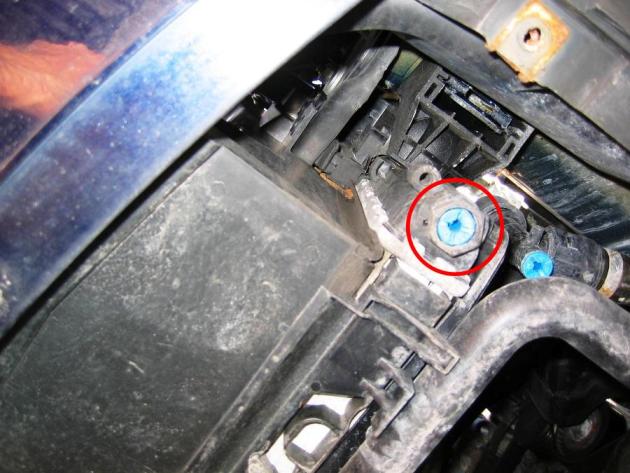

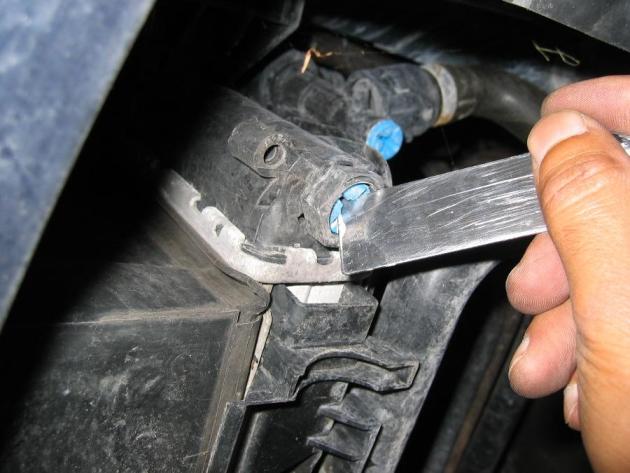

	Open and remove this drain plug with a similar tool or flat head screw driver and watch for the water that starts pouring out immediately. Also make sure the drain plug does not get lost.

13)	Loosening The Smaller Blue Drain Plug

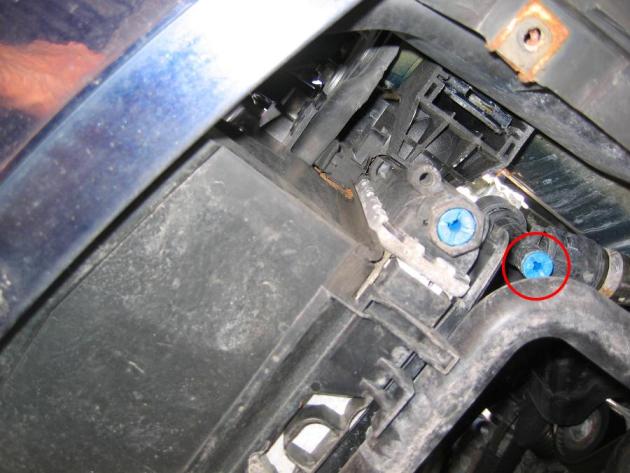

	Only loosen this second smaller blue drain plug (turn it a couple of times round with a flat head screw driver) and let the remaining water drip out.

14)	Radiator - Draining

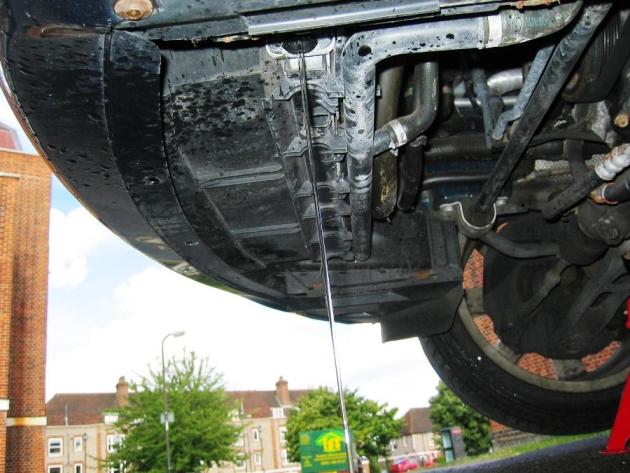

	Demonstrating how the water & coolant mix pours out. NOTE: Coolant is poisonous, if any leaks on to the ground, wash it away with water. As it is sweet, animals tend to drink / lick it.

14)

Radiator - Draining

Demonstrating how the water & coolant mix pours out.

NOTE: Coolant is poisonous, if any leaks on to the ground, wash it away with water. As it is sweet, animals tend to drink / lick it.

15)	Loosening Engine Block Drain Plug
	The engine Block screw drain plug also needs to be removed to drain all the water, but I do not have any photos of that yet and will put them up next time I am under the car. Apologies for that!

16)	Radiator - Bleeding
	Now to bleed the radiator to enable all the water to come out, turn the black bleed / vent screw a few times to loosen it, with a flat head screw driver.

17)	Radiator - Flushing
	Next fit the big blue drain plug back and also the smaller blue drain plug (but not too tight, as you may damage them) and fill the radiator with water. I used tap water myself, but if you prefer, you could use distilled water. Next close the radiator cap and tighten the black bleed / vent screw and either take the car for a short drive or start the engine and rev it a for a few minutes. This will enable the water to mix with / dilute any remaining old coolant. NOTE: Do not over tighten the bleed / vent screw, it will / can break in half...as happened to me!

17)

Radiator - Flushing

Next fit the big blue drain plug back and also the smaller blue drain plug (but not too tight, as you may damage them) and fill the radiator with water. I used tap water myself, but if you prefer, you could use distilled water.

Next close the radiator cap and tighten the black bleed / vent screw and either take the car for a short drive or start the engine and rev it a for a few minutes. This will enable the water to mix with / dilute any remaining old coolant.

NOTE: Do not over tighten the bleed / vent screw, it will / can break in half...as happened to me!

18)	Filling Ionised Water and Coolant
	Make sure the radiator isn't too hot, then slowly open the Radiator cap again (with your face pointing in the other direction), open and remove the big bottom blue drain plug again, loosen the smaller blue drain plug and then loosen the top bleed / vent screw again. Then wait for all the water to drain out, it may take about 10 minutes. Next close and tighten the bottom blue drain plugs (not too tight). Turn the heating on full in the car as in Step #19 and pour the required ratio of water to Coolant into the Radiator. This will be written on the Coolant bottle, depending on how cold climate you live in. For the UK (maximum -20 degrees) it is 1.5 litre of Collant to 3 litre of water, so to get the total correct, roughly about 1 full bottle of coolant + 250ml from the second bottle and 3.25 litres of water.

18)

Filling Ionised Water and Coolant

Make sure the radiator isn't too hot, then slowly open the Radiator cap again (with your face pointing in the other direction), open and remove the big bottom blue drain plug again, loosen the smaller blue drain plug and then loosen the top bleed / vent screw again. Then wait for all the water to drain out, it may take about 10 minutes.

Next close and tighten the bottom blue drain plugs (not too tight).

Turn the heating on full in the car as in Step #19 and pour the required ratio of water to Coolant into the Radiator. This will be written on the Coolant bottle, depending on how cold climate you live in. For the UK (maximum -20 degrees) it is 1.5 litre of Collant to 3 litre of water, so to get the total correct, roughly about 1 full bottle of coolant + 250ml from the second bottle and 3.25 litres of water.

19)	Radiator Full

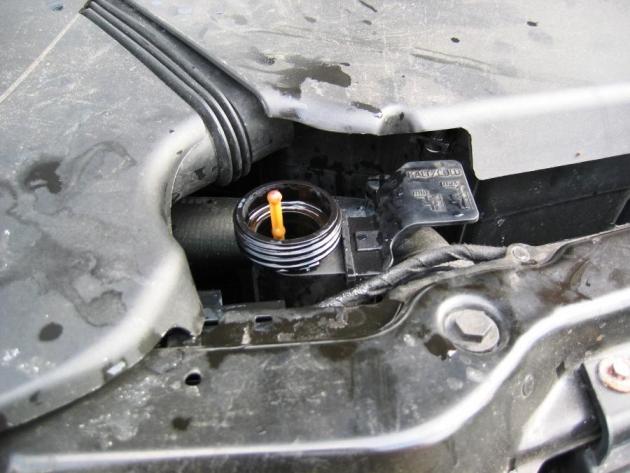

	Pour until the orange stick sticks out as below, indicating it is full.

20)	Heating On Full

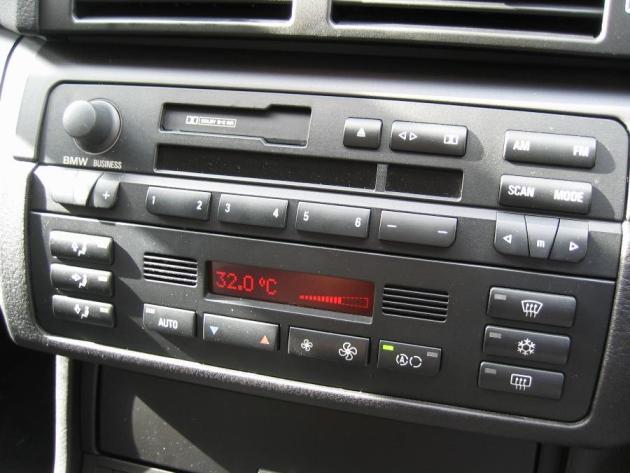

	Close the Radiator cap and tighten the black bleed / vent screw next to it. Now turn on the engine and rev it for about 5 minutes, also turn on the car heating to full temperature. All these will bring out any air trapped in the pipes.

21)	Radiator - Bleeding
	One you have done that, leave the engine running and open the Radiator cap and loosen the black bleed / vent screw until water starts coming out of the hole. This process gets rid of the trapped air. Now you may need to pour a little more water / coolant in the Radiator again, to fill it up. Follow this procedure as many times as you like, while revving the car. Once satisfied, fix the splash shield back to the bottom of the car, tighten the Radiator cap and tighten the bleed / vent screw (again not too tight). One method to tell if all the trapped air has been released, is to ensure you are getting constant hot air from your air vents inside the car. If it fluctuates, it means there is more to bleed.

21)

Radiator - Bleeding

One you have done that, leave the engine running and open the Radiator cap and loosen the black bleed / vent screw until water starts coming out of the hole. This process gets rid of the trapped air. Now you may need to pour a little more water / coolant in the Radiator again, to fill it up.
Follow this procedure as many times as you like, while revving the car.

Once satisfied, fix the splash shield back to the bottom of the car, tighten the Radiator cap and tighten the bleed / vent screw (again not too tight).

One method to tell if all the trapped air has been released, is to ensure you are getting constant hot air from your air vents inside the car. If it fluctuates, it means there is more to bleed.

22)	Final To pup Water & Coolant
	Once the car has completely cooled down, open the radiator cap once again and top up the radiator with water & coolant (till the yellow stick sticks out again), as it will usually be required.

DIY Radiator Flush / Coolant Drain by - imran hamid www.impee.co.uk

Any questions please contact me
